Ecofit Xtra

Ecofit Xtra

The heavy-duty bed for home care

The ECOFIT XTRA is a well thought out heavy-duty bed for home care. It has been specially designed for obese people, can support a maximum patient weight of 300 kg and is incredibly stable.

Kopfteil Icon
0 – 70°
0 – 30°
Betthöhe Icon
Height adjustment
270 – 695 mm
Trendelenburg Icon
Trendelenburg position
Categories: ,

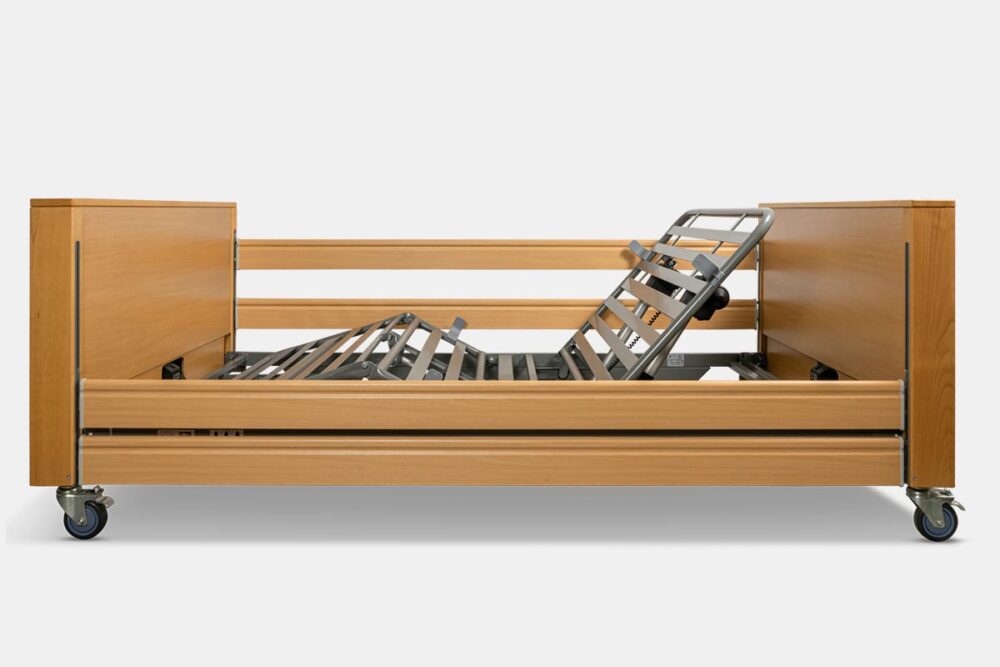

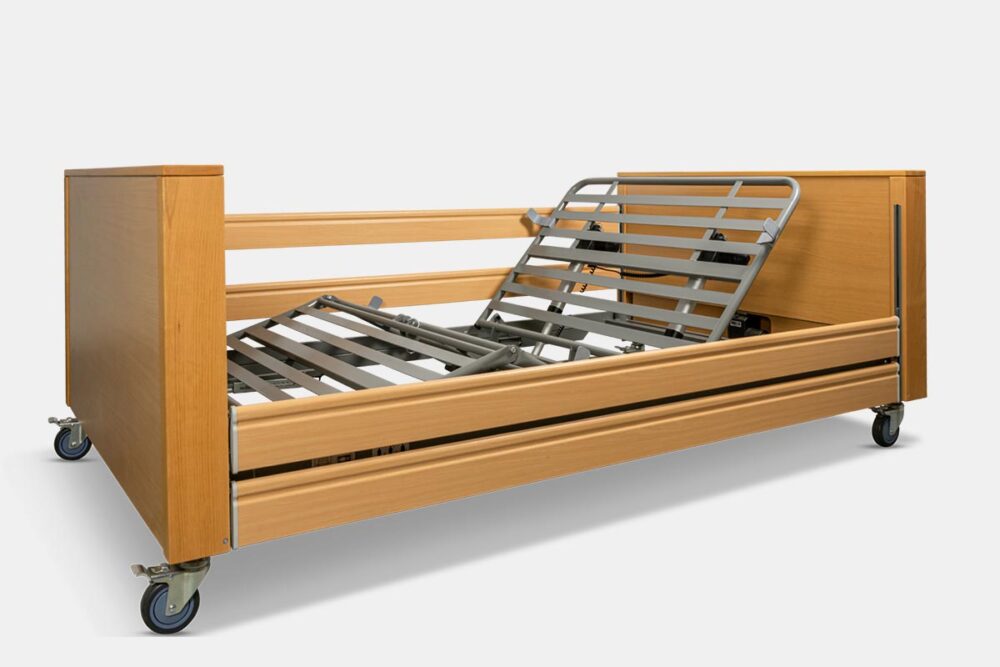

The ECOFIT XTRA has a 4-section steel slat bed surface with mattress guidance at the head and foot and is available in the following dimensions: 120 x 200 cm and 140 x 200 cm. The electric height adjustment ranges from 270 mm to 695 mm and can be set to suit each patient’s individual needs. The electrically adjustable backrest can be inclined up to 70° and the footrest can be inclined up to 30°. The ECOFIT XTRA is extremely robust and can support a maximum patient weight of 300 kg. The bed’s safe working load is up to 380 kg. In addition to its sophisticated appearance, thanks to the solid wood panelling, this care bed is also practical and easy to clean.

Other features

  • Mechanical adjustment of the foot of the bed to 5 different positions

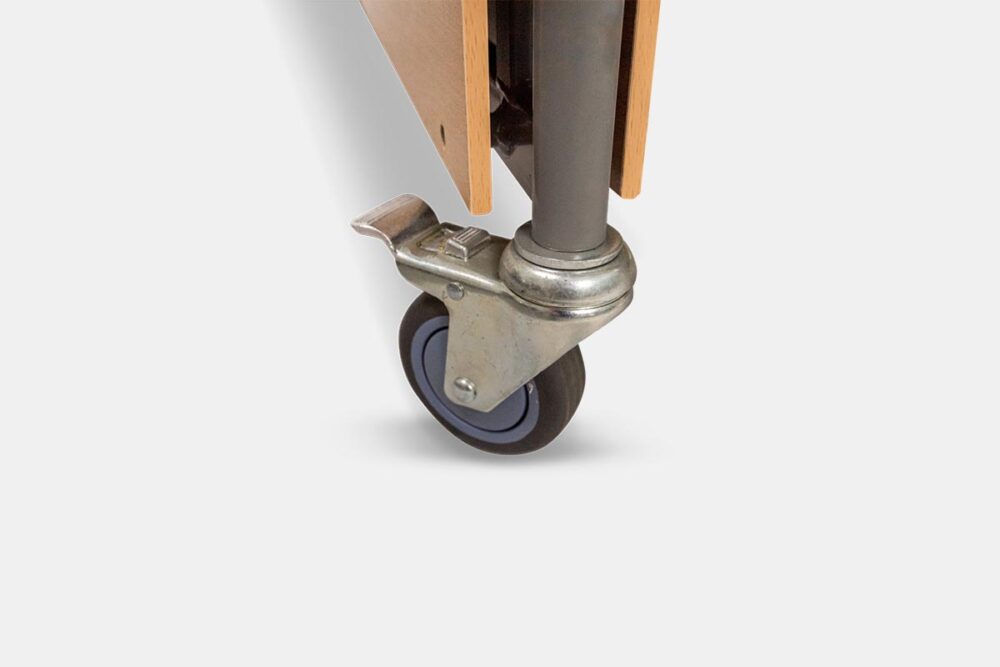

  • 4 x 100 mm castors that can be locked individually
  • 24-volt power supply for greater safety
  • Aluminium side rails
  • Emergency lowering by means of a 9-volt battery in the event of a power cut

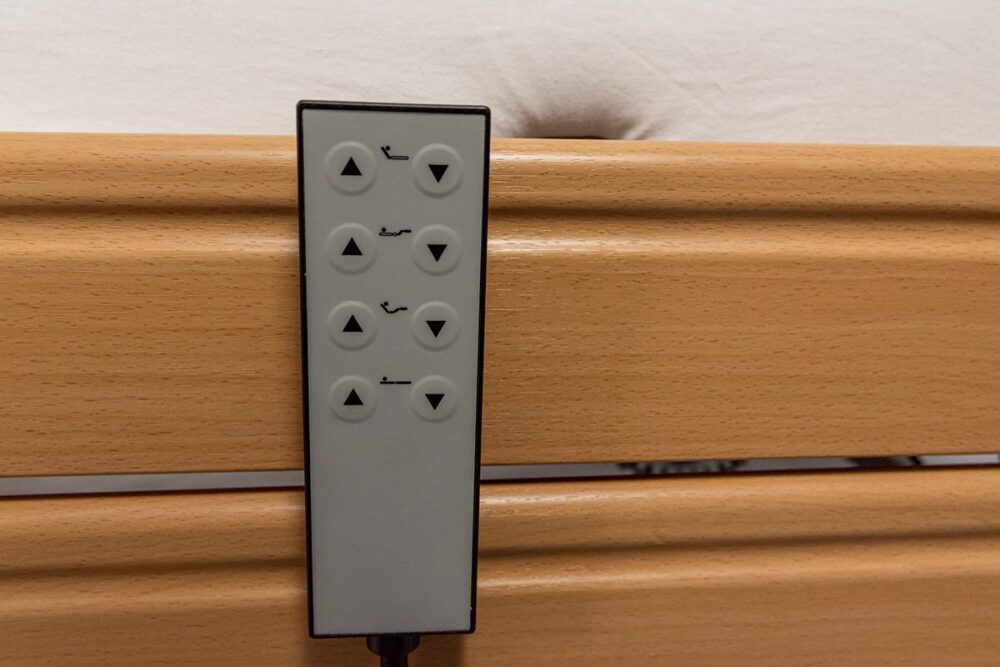

  • Handset with single-fault safety and lock function
  • Patient lifting pole that can support up to 80 kg (160 kg version also available)
  • IPX4 protection class


  • 20 cm bed extension
  • Trendelenburg / Reverse Trendelenburg function
  • Side rail cushions
  • Reading light
  • Clip-on tray
  • Underbed lighting with motion sensor
  • Also available for maximum patient weights of 400 kg and 500 kg.
