The BiB system

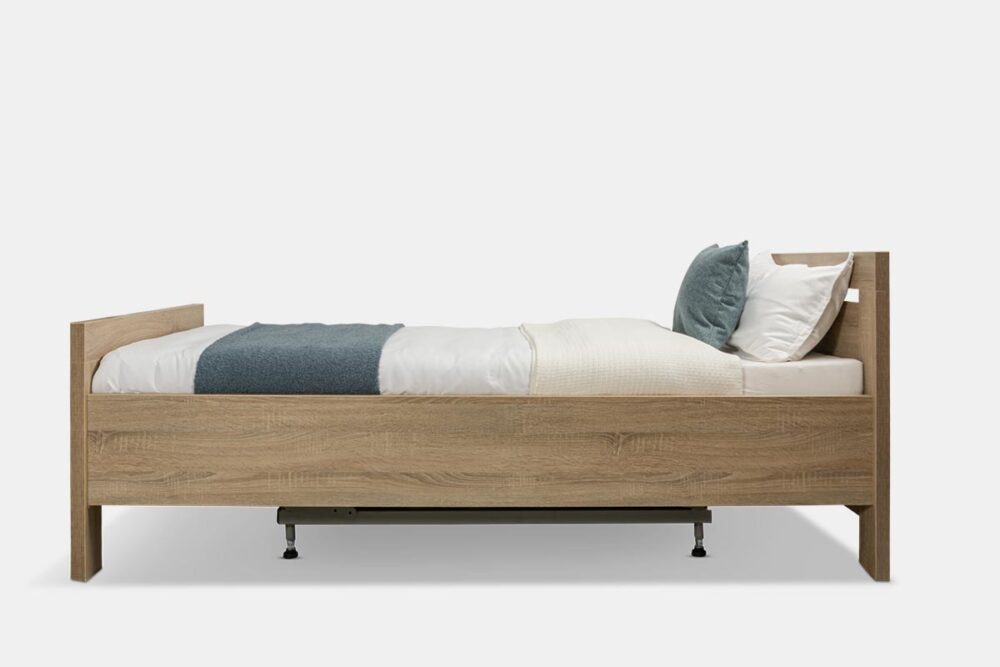

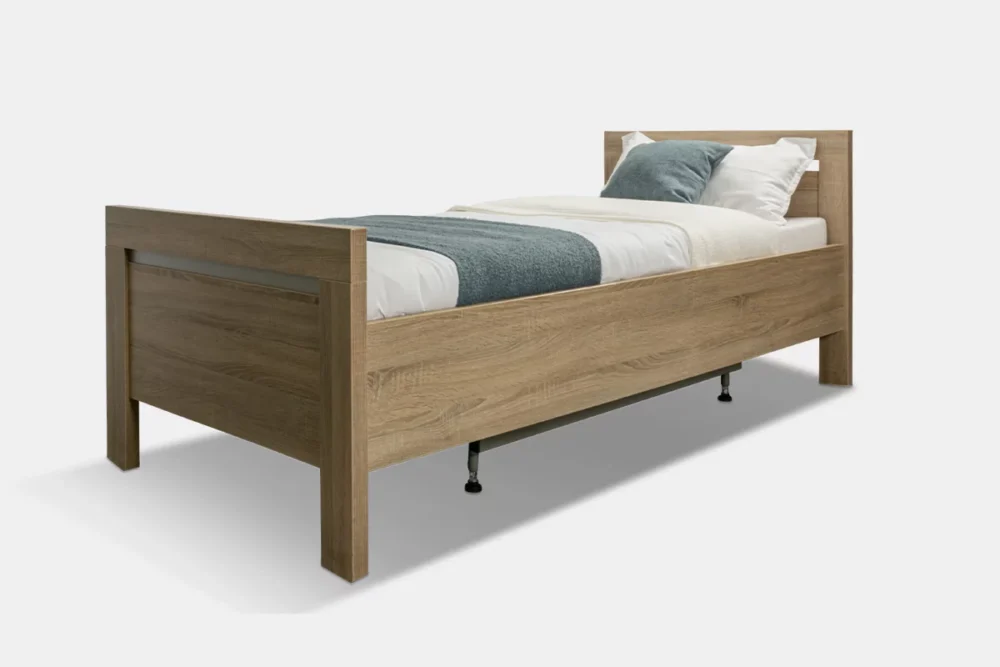

The BiB (Bed-in-Bed) system is ideal for anyone that wants the comfort and functionality of a care bed while using their own regular bed.

Kopfteil Icon
0 – 70°
0 – 30°
Betthöhe Icon
Height adjustment
360 – 800 mm
Categories: ,

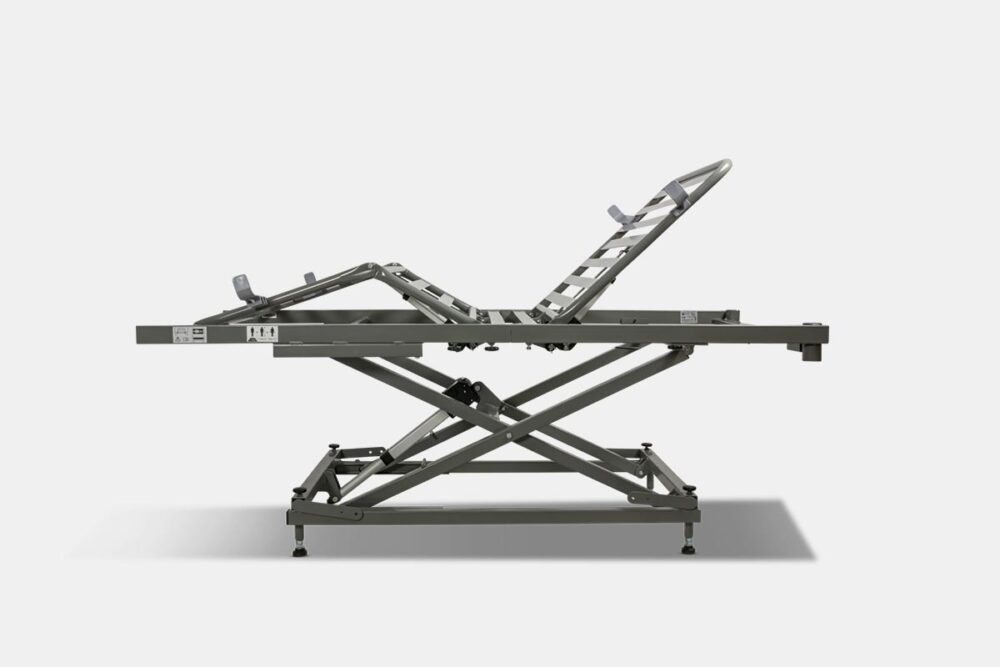

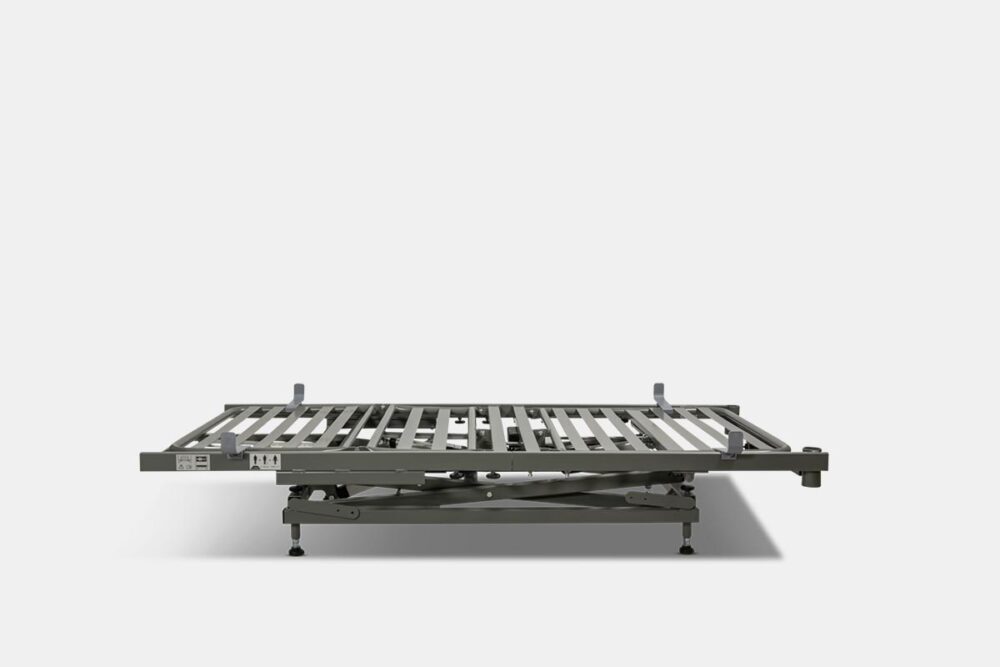

The BiB system can be used with any existing bed frame. It has a 4-section steel slat bed surface with mattress guidance at the head and foot and is suitable for mattresses with the following dimensions: 90 x190 cm, 90 x 200 cm, 100 x 190 cm, 100 x 200 cm. The electric height adjustment ranges from 360 mm to 800 mm. The Eco-BiB has a maximum patient weight of 185 kg and a safe working load of up to 220 kg. The electrically adjustable backrest can be tilted up to 70°. The footrest can be tilted to up to 30° and can therefore be set to a comfortable position for each individual patient. The BiB system is easy to clean and can be adapted to different bed sizes without accessories. All steel parts are painted RAL 9023 (pearl dark grey).

Other features

  • Mechanical adjustment of the foot of the bed to 5 different positions

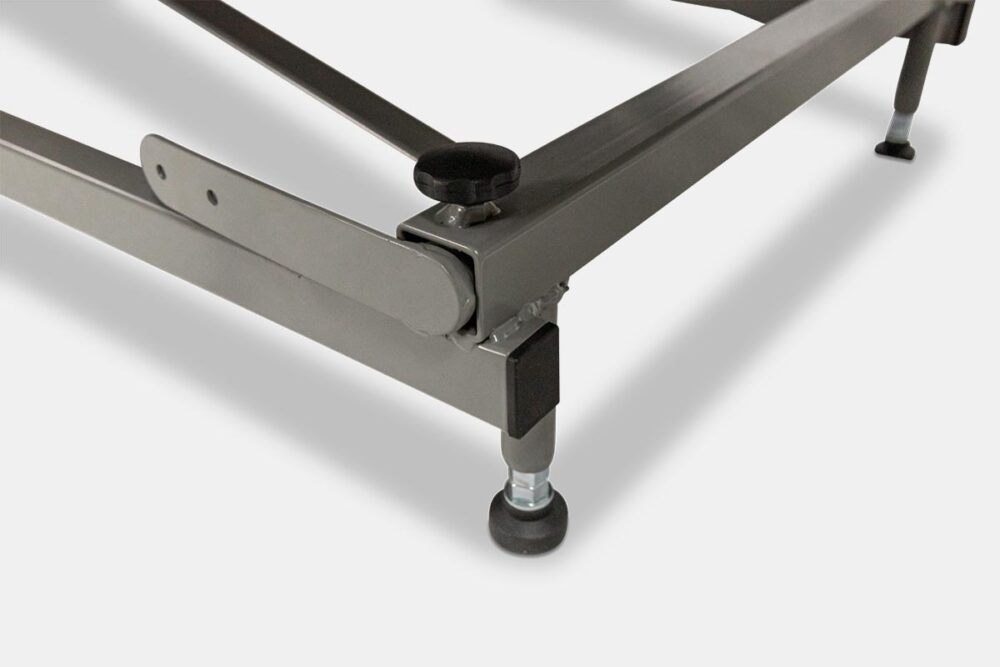

  • 4 supporting feet or 4 castors that can be locked individually
  • 24-volt power supply for greater safety

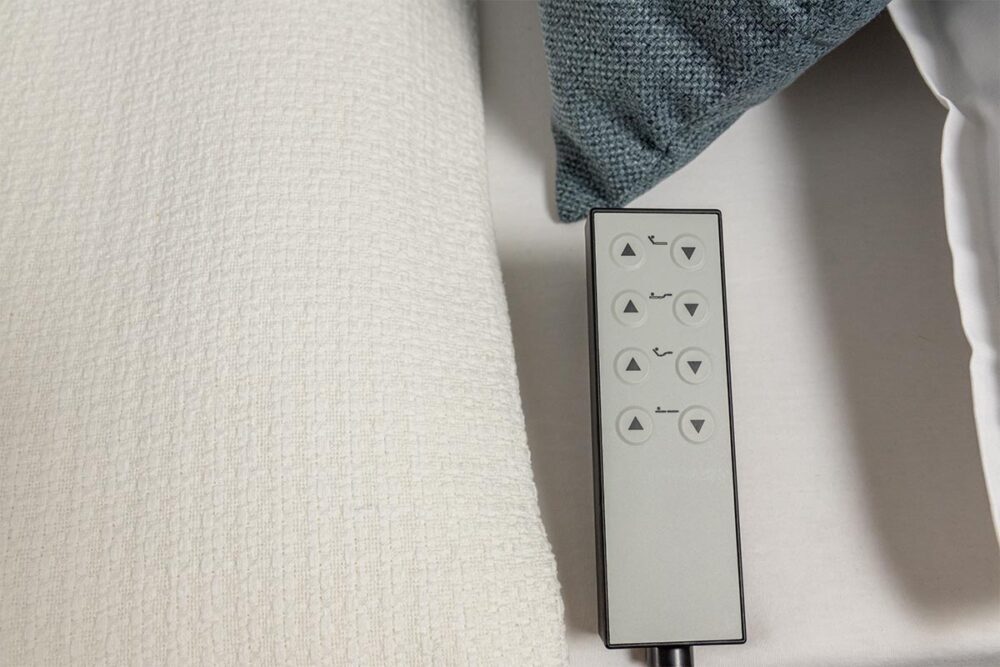

  • Handset with single-fault safety and lock function
  • IPX4 protection class


  • Patient lifting pole that can support up to 80 kg
  • Reading light
  • Underbed lighting with motion sensor
