Ecofit Plus / Plus low

Ecofit Plus / Plus low

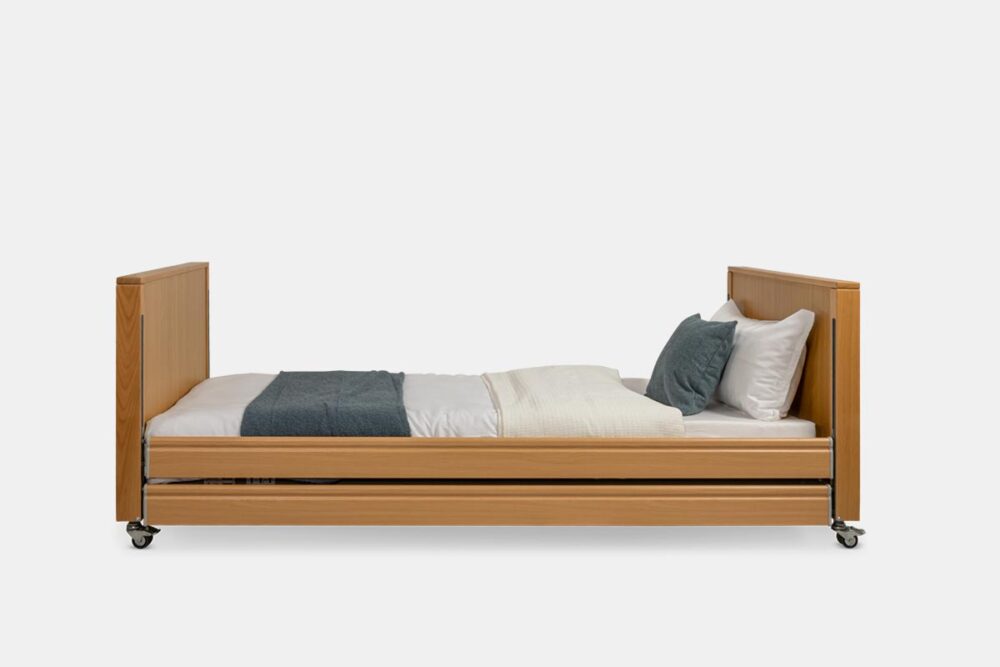

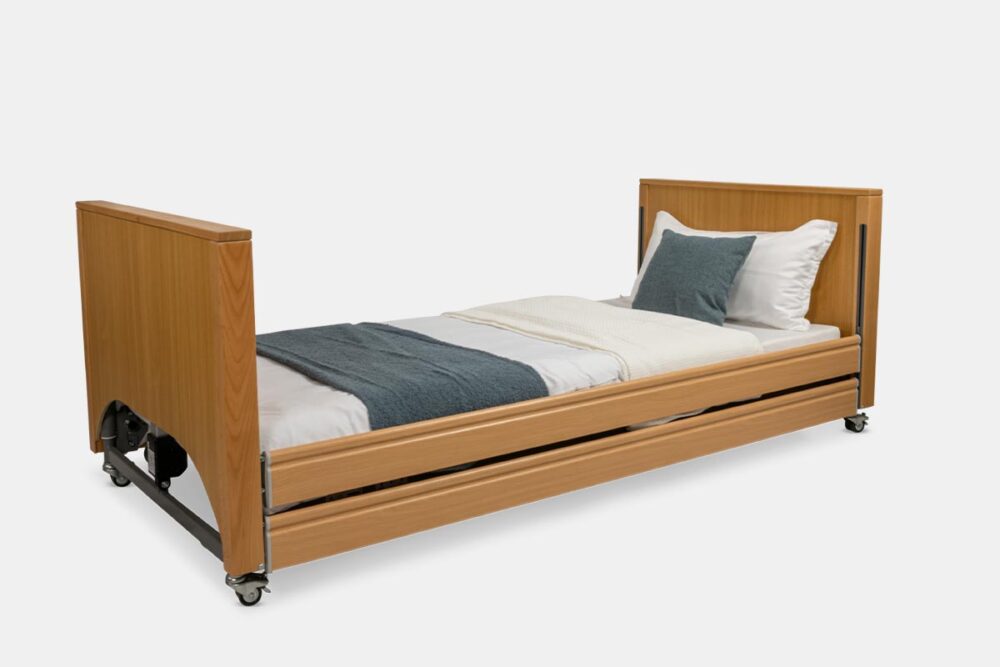

A care bed with character

The ECOFIT PLUS has solid wood panelling and a homely appearance. This care bed also comes in a LOW version for fall prevention.

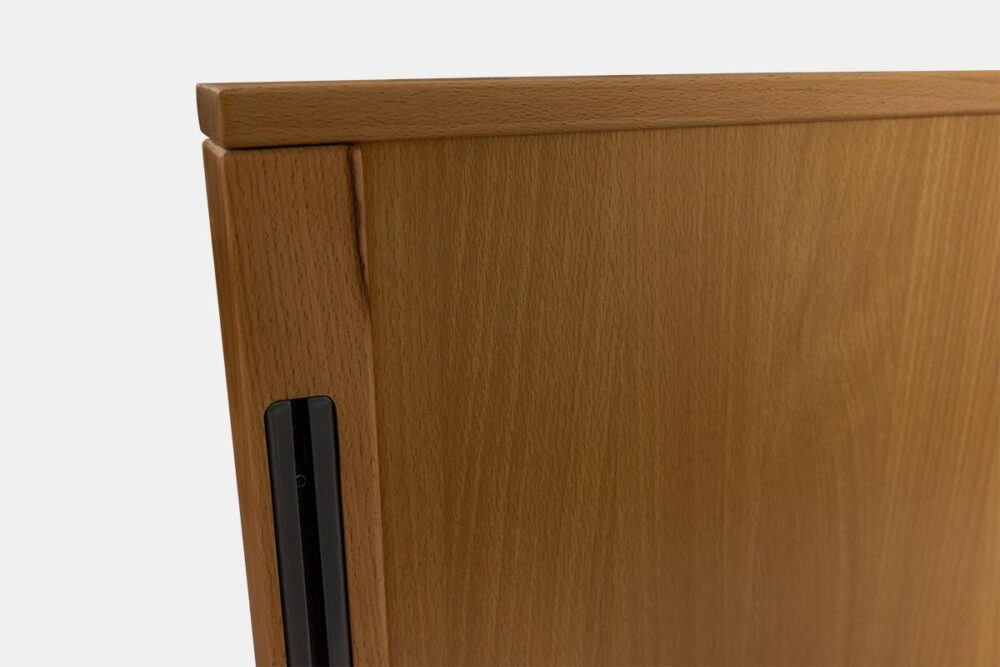

Kopfteil Icon

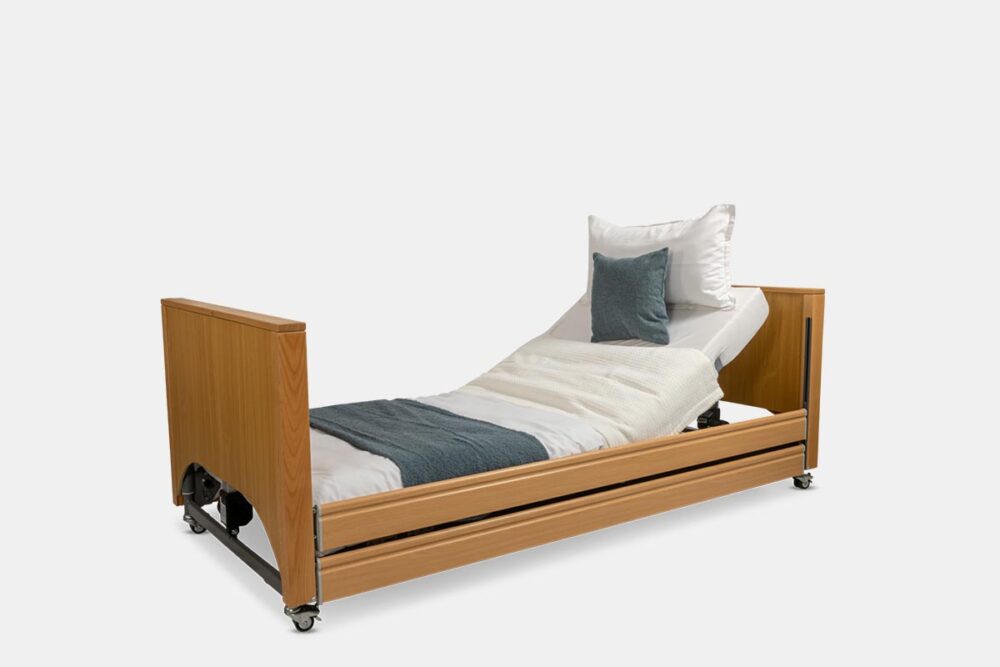

0 – 70°
0 – 30°
Betthöhe Icon
Height adjustment
385 – 810 mm, 220 – 645 mm (LOW version)
Trendelenburg Icon
Trendelenburg position
Categories: ,

The ECOFIT PLUS has a 90 x 200cm, 4-section steel slat bed surface with mattress guidance at the head and foot. The electric height adjustment ranges from 385 mm to 810 mm. This enables patients to get in and out of their bed without any problems and makes it easier for caregivers to administer care. The ECOFIT PLUS LOW model has a lower height adjustment range (220 mm to 645 mm) and therefore prevents falls. The ECOFIT PLUS has a maximum patient weight of 185 kg and a safe working load of up to 220 kg. The electrically adjustable backrest can be tilted up to 70° and the footrest up to 30°. This model can be assembled quickly and easily without tools. The ECOFIT PLUS is also extremely low-maintenance and easy to clean and comes with a hook strap for maximum stability. As the bed comes equipped with 115 mm-high wooden side rails, mattresses with a thickness of up to 20 cm can be used. The high-quality wood panelling with guide rails for the side rails makes the ECOFIT PLUS stand out. The steel bed frame is painted RAL 9023 (pearl dark grey).


Other features

  • Mechanical adjustment of the foot of the bed to 5 different positions

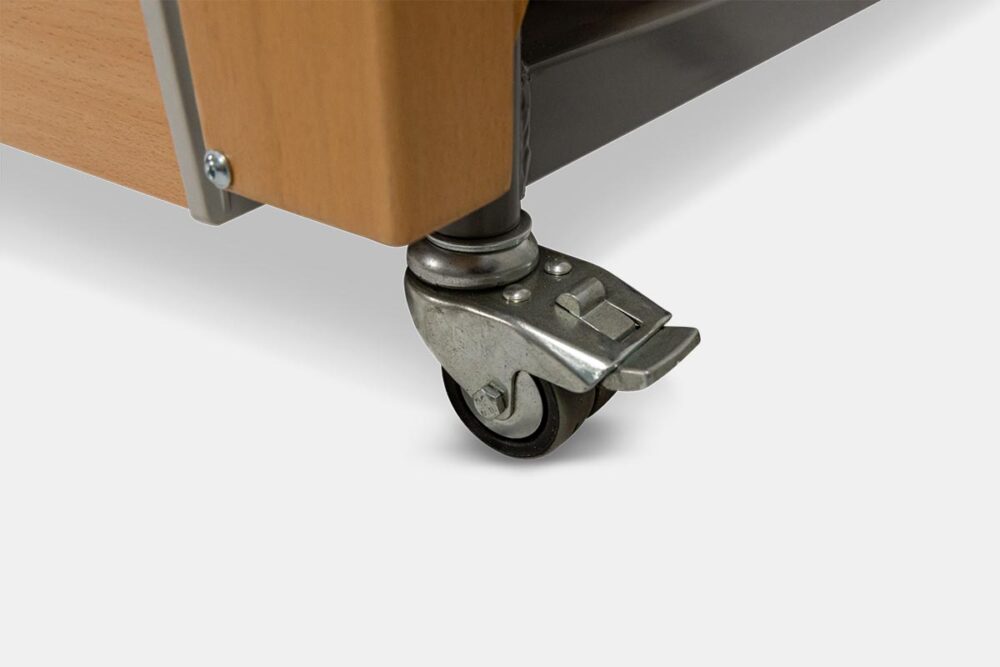

  • 4 x 100 mm castors that can be locked individually
  • 24-volt power supply for greater safety
  • Emergency lowering by means of a 9-volt battery in the event of a power cut

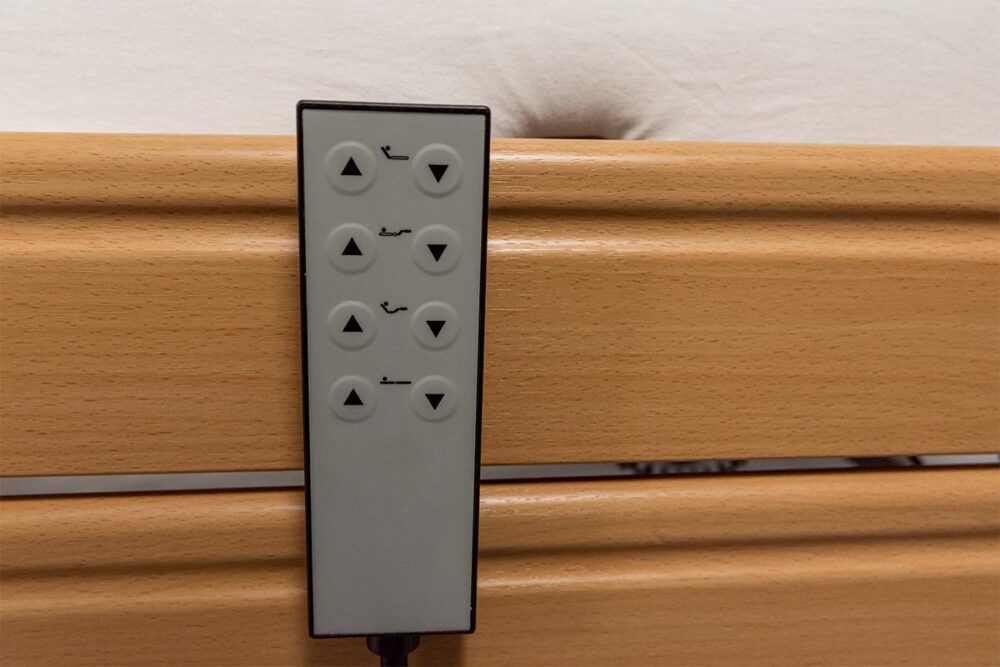

  • Handset with single-fault safety and lock function
  • Patient lifting pole that can support up to 80 kg
  • IPX4 protection class


  • 20 cm bed extension
  • Trendelenburg / Reverse Trendelenburg function
  • Side rail cushions
  • Side rails in beech or aluminium
  • Side rails with safety release
  • Reading light
  • Clip-on tray
  • Underbed lighting with motion sensor
